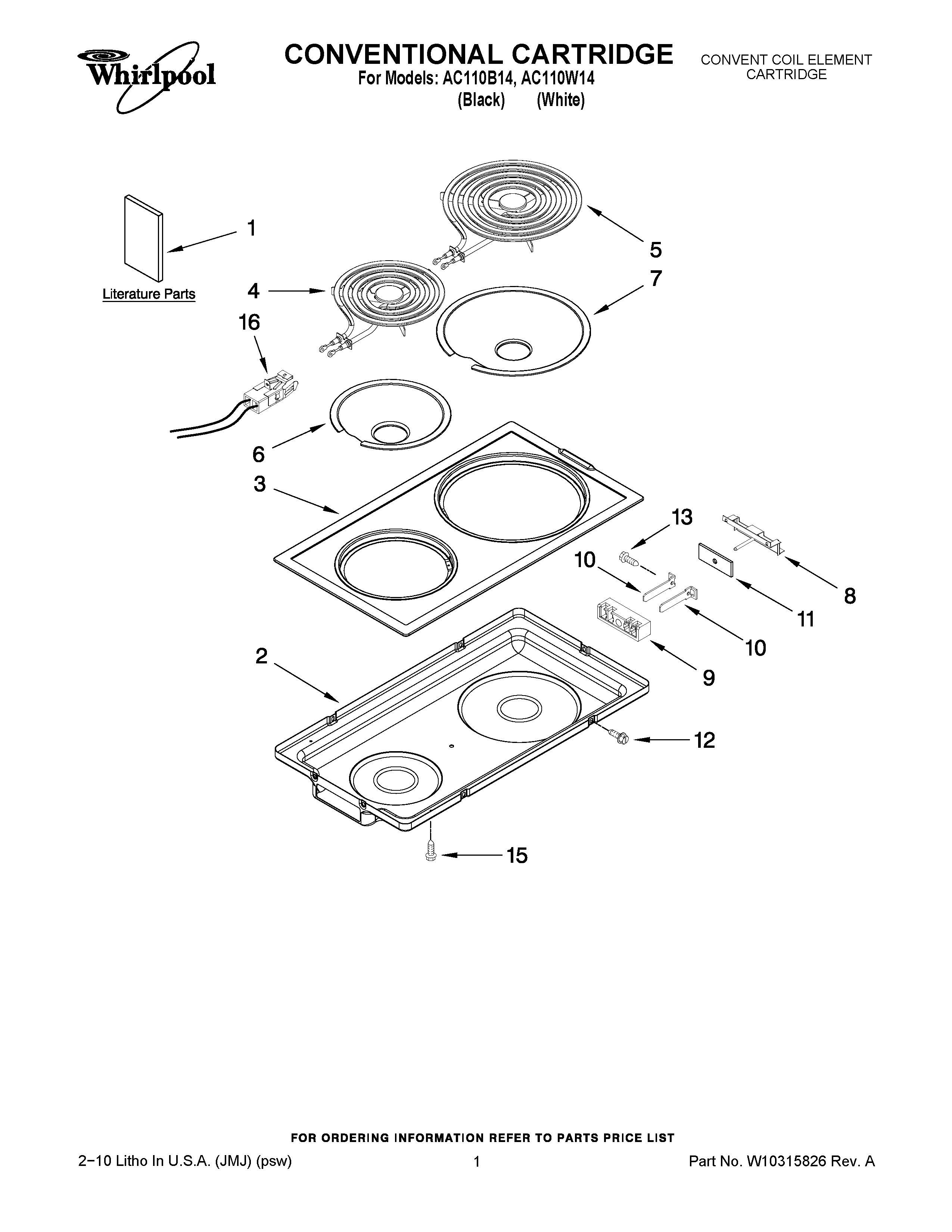

Model Whirlpool AC110W14 CONVENT COIL ELEMENT CARTRIDGE – Common Parts & Diagrams

1
USE & CARE GUIDE
USE & CARE GUIDE WPL 8111P20560 Contact Us For Availability
View on Model
2
PAN, CARTRIDGE
PAN, CARTRIDGE WPL 3401F08880 Contact Us For Availability
View on Model
3
CARTRIDGE, TOP (WHITE)
CARTRIDGE, TOP (WHITE) WPL 2002F12281 Contact Us For Availability
View on Model
3
CARTRIDGE, TOP (BLACK)
CARTRIDGE, TOP (BLACK) WPL 2002F12290 Contact Us For Availability
View on Model
4
ELEMENT (6``)
ELEMENT (6``) WPL 7406P48060 Contact Us For Availability
View on Model
5
ELEMENT (8``)
ELEMENT (8``) WPL 7406P47860 Contact Us For Availability
View on Model
6
PAN, DRIP (6``)
PAN, DRIP (6``) WPL 7725P06760 Contact Us For Availability
View on Model
7
PAN, DRIP (8``)
PAN, DRIP (8``) WPL 7725P06860 Contact Us For Availability
View on Model
8
BRACKET, RETAINING, ASSY.
BRACKET, RETAINING, ASSY. WPL 3801F40951 Contact Us For Availability
View on Model
9
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P06160 Contact Us For Availability
View on Model
10
SPADE, CONTACT
SPADE, CONTACT WPL 7405P13160 Contact Us For Availability
View on Model
11
INSULATOR, CONTACT SPADE
INSULATOR, CONTACT SPADE WPL 7003P07860 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL 7101P40360 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 7101P44560 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 7101P39460 Contact Us For Availability
View on Model
16
CLIP & BLOCK ASSY.
CLIP & BLOCK ASSY. WPL 5700P88760 Contact Us For Availability
View on Model
NI
WIRE ASSY. BLACK
WIRE ASSY. BLACK WPL 5700D80760 Contact Us For Availability
View on Model
NI
WIRE ASSY. BLUE
WIRE ASSY. BLUE WPL 5700D80860 Contact Us For Availability
View on Model
NI
WIRE ASSY. YELLOW
WIRE ASSY. YELLOW WPL 5700D80960 Contact Us For Availability
View on Model
