Model Maytag 7MMVWC565FW0 7MMVWC565FW0 – Common Parts & Diagrams
02 - TOP AND CABINET PARTS

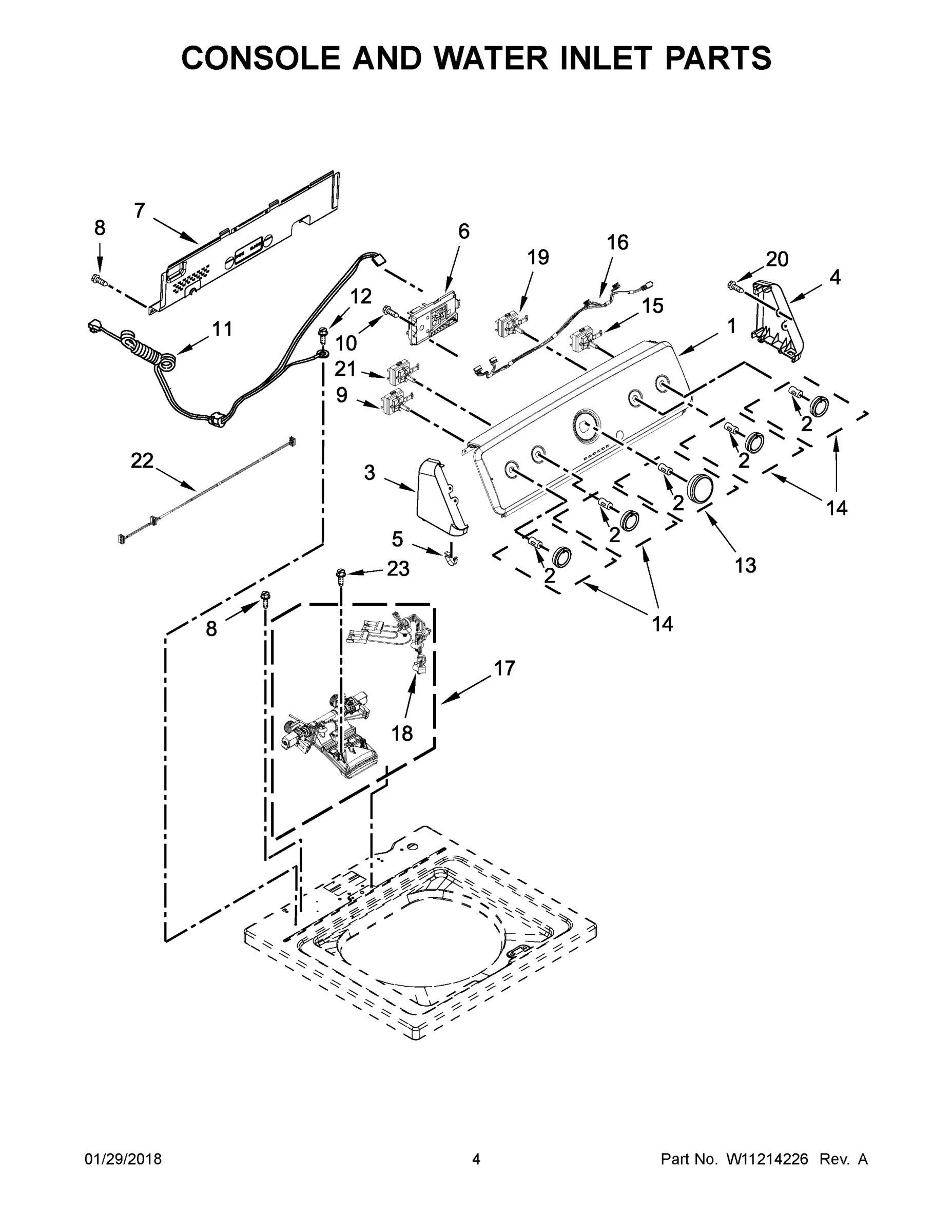

03 - CONSOLE AND WATER INLET PARTS
04 - BASKET AND TUB PARTS
05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMVWC565FW0 7MMVWC565FW0
1
INSTALLATION INSTRUCTIONS MAY W11175837 Contact Us For Availability
1
PANEL, CONSOLE MAY W11116073 Contact Us For Availability
1
DISPENSER, FABRIC SOFTENER MAY W10863013 Contact Us For Availability
1
MAY W10876600 MAY W10876600 Contact Us For Availability
1A
TECH SHEET MAY W10740624 Contact Us For Availability
1B
USE AND CARE GUIDE MAY W11175835 Contact Us For Availability
1C
QUICK START GUIDE MAY W11175836 Contact Us For Availability
1D
MAY W11184595 MAY W11184595 Contact Us For Availability
2
TOP (WHITE) MAY W10768768 Contact Us For Availability
2
CLIP, SPRING MAY 688805 Contact Us For Availability
2
TUB RING MAY W10578859 Contact Us For Availability
2
MAY WPW10004910 MAY WPW10004910 Contact Us For Availability
3
LID (WHITE) MAY W10027624 Contact Us For Availability
3
END CAP (L.H.) (WHITE) MAY W10193824 Contact Us For Availability
3
MAY W10752187 MAY W10752187 Contact Us For Availability
3
MAY W10802689 MAY W10802689 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
MAY WP285655 MAY WP285655 Contact Us For Availability
4
END CAP (R.H.) (WHITE) MAY W10193821 Contact Us For Availability
4
MAY W11161960 MAY W11161960 Contact Us For Availability
5
MAY WP9740848 MAY WP9740848 Contact Us For Availability
5
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
5
BASKET ASSEMBLY MAY W10586077 Contact Us For Availability
5
GEARCASE ASSEMBLY MAY W10870913 Contact Us For Availability
6
MAY WP91770 MAY WP91770 Contact Us For Availability
6
MAY W11184150 MAY W11184150 Contact Us For Availability
6
MAY WPW10402178 MAY WPW10402178 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
6A
HINGE, LID (RIGHT) MAY 54583 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
PANEL, CONSOLE REAR COVER MAY W10641362 Contact Us For Availability
7
MAY W10528947 MAY W10528947 Contact Us For Availability
7
MOTOR, DRIVE MAY W10677723 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10714899 Contact Us For Availability
8
MAY WP489069 MAY WP489069 Contact Us For Availability
8
MAY WP8533953 MAY WP8533953 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
SWITCH, ROTARY ENCODER (3 POSITION) MAY W10285517 Contact Us For Availability
9
TUB MAY W10512161 Contact Us For Availability
9
BELT, DRIVE MAY W10006384 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
10
MAY WP90767 MAY WP90767 Contact Us For Availability
10
MAY WPW10215093 MAY WPW10215093 Contact Us For Availability
10
ACTUATOR- SHIFT MAY W10815026 Contact Us For Availability
11
ABSORBER, IMPACT MAY W10834527 Contact Us For Availability
11
CORD, POWER MAY W10737739 Contact Us For Availability
11
MAY WP8533928 MAY WP8533928 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
MAY WP21258 MAY WP21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W11033491 Contact Us For Availability
12
CAPACITOR, MOTOR RUN MAY W10866250 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
KNOB, TIMER (GREY) MAY W10558463 Contact Us For Availability
13
CLAMP, CABLE MAY W10005430 Contact Us For Availability
13
SHIELD, PULLEY COVER MAY W10427633 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10682535 Contact Us For Availability
14
KNOB, CONTROL (GREY) MAY W10562155 Contact Us For Availability
14
MAY WPW10109200 MAY WPW10109200 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
15
HARNESS, LOWER MAY W10777952 Contact Us For Availability
15
SHIELD, HEAT MAY W10894129 Contact Us For Availability
16
TIE, CABLE MAY W10339879 Contact Us For Availability
16
HARNESS, UPPER MAY W10694685 Contact Us For Availability
16
HOSE, PRESSURE SWITCH MAY W10236981 Contact Us For Availability
16
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
17
CABINET (WHITE) MAY W10676680 Contact Us For Availability
17
INLET ASSEMBLY, WATER MAY W10869801 Contact Us For Availability
17
MAY WPW10298887 MAY WPW10298887 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT (WHITE) MAY W10724131 Contact Us For Availability
18
HARNESS, VALVE MAY W10868094 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
20
SCREW MAY 359625 Contact Us For Availability
21
MAY W11035296 MAY W11035296 Contact Us For Availability
21
SWITCH, ROTARY ENCODER (5 POSITION) MAY W10285518 Contact Us For Availability
22
FOOT ASSEMBLY, LEVELING MAY W10687506 Contact Us For Availability
22
HARNESS, JUMPER MAY W10694669 Contact Us For Availability
23
MAY WPW10213953 MAY WPW10213953 Contact Us For Availability
23
PANEL, REAR MAY W10612644 Contact Us For Availability
24
MAY WP356138 MAY WP356138 Contact Us For Availability
25
ABSORBER, IMPACT MAY 8564458 Contact Us For Availability
26
COVER, HARNESS MAY W10648853 Contact Us For Availability
28
PAD, LID HINGE MAY W10684258 Contact Us For Availability
29
MAY W10826733 MAY W10826733 Contact Us For Availability
30
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
32
BADGE MAY W10612925 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, CONNECTOR ASSEMBLY MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
MAY 3363920A MAY 3363920A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017B MAY 72017B Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
MAY WP285195 MAY WP285195 Contact Us For Availability
NI
MAY WP384496 MAY WP384496 Contact Us For Availability
× ![]()
