Model Whirlpool 5KFPM770SNK0 12 CUP FOOD PROCESSOR – Common Parts & Diagrams

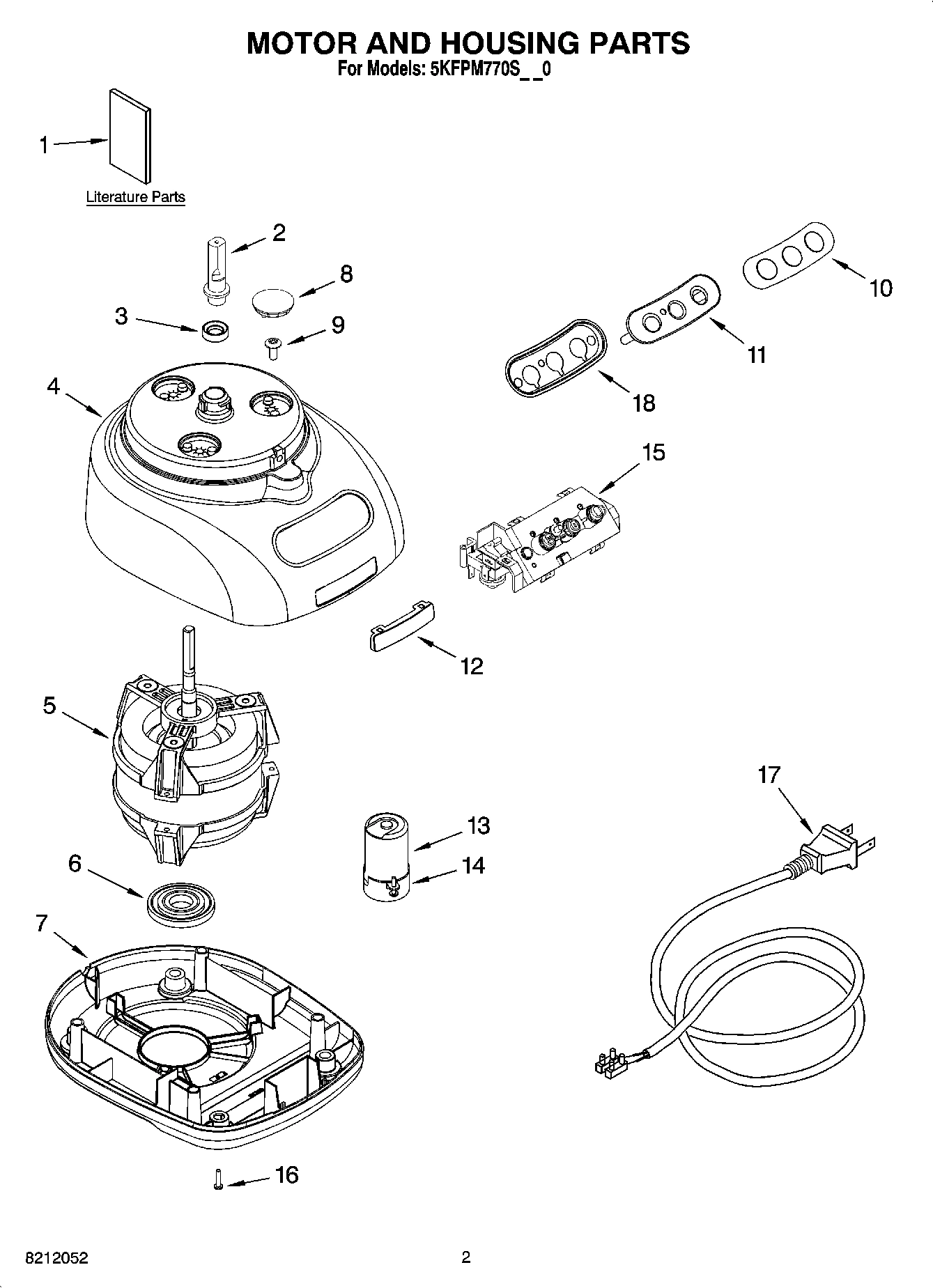

01 - MOTOR AND HOUSING PARTS

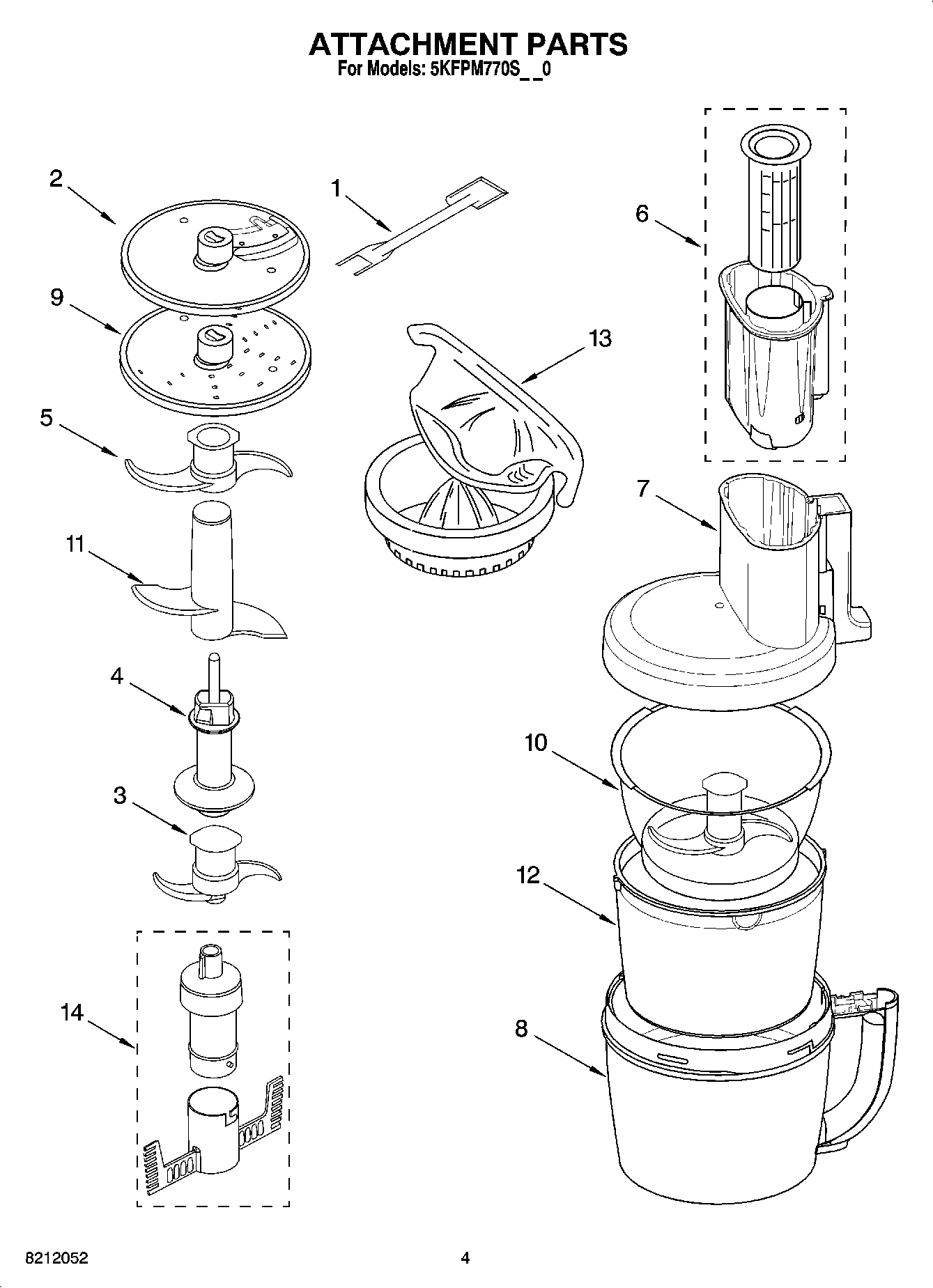

02 - ATTACHMENT PARTS
Common parts from model Whirlpool 5KFPM770SNK0 12 CUP FOOD PROCESSOR
2
Sleeve, Motor Shaft WPL 8211849 Contact Us For Availability
2
Disc, Slicing (2 mm) WPL 8211929 Contact Us For Availability
2
Disc, Slicing (4 mm) WPL 8211930 Contact Us For Availability
3
Seal, Oil WPL 8211828 Contact Us For Availability
3
Mini Blade WPL 8212012 Contact Us For Availability
4
Housing, Motor (Nickel) WPL 8211823 Contact Us For Availability
4
Housing, Motor (White) WPL 8212068 Contact Us For Availability
4
Housing, Motor (Empire Red) WPL 8212069 Contact Us For Availability
4
Housing, Motor (Almond Creme) WPL 8212070 Contact Us For Availability
4
Adapter, Shaft & Disc WPL 8211858 Contact Us For Availability
5
Blade, Multipurpose WPL 8212014 Contact Us For Availability
5
Motor WPL 8212079 Contact Us For Availability
6
Grommet, Motor WPL 8212091 Contact Us For Availability
6
Pusher, Food WPL 8212020 Contact Us For Availability
7
Base, Housing (Onyx Black) WPL 8212080 Contact Us For Availability
7
Base, Housing (White) WPL 8212081 Contact Us For Availability
7
Base, Housing (Empire Red) WPL 8212082 Contact Us For Availability
7
Base, Housing (Almond Creme) WPL 8212083 Contact Us For Availability
7
Cover, Work Bowl (Onyx Black) WPL 8212024 Contact Us For Availability
7
Cover, Work Bowl (White) WPL 8212062 Contact Us For Availability
7
Cover, Work Bowl (Empire Red) WPL 8212063 Contact Us For Availability
7
Cover, Work Bowl (Almond Creme) WPL 8212064 Contact Us For Availability
8
Cover, Screw (Onyx Black) WPL 8211827 Contact Us For Availability
8
Cover, Screw (White) WPL 8212084 Contact Us For Availability
8
Cover, Screw (Empire Red) WPL 8212085 Contact Us For Availability
8
Cover, Screw (Almond Creme) WPL 8212086 Contact Us For Availability
8
Bowl, Work (Onyx Black) WPL 8212019 Contact Us For Availability
8
Bowl, Work (White) WPL 8212065 Contact Us For Availability
8
Bowl, Work (Empire Red) WPL 8212066 Contact Us For Availability
8
Bowl, Work (Almond Creme) WPL 8212067 Contact Us For Availability
9
Screw, Motor Locking WPL 8211586 Contact Us For Availability
9
Disc, Shredding (4 mm) WPL 8211933 Contact Us For Availability
10
Overlay, Switch (Black) WPL 8212087 Contact Us For Availability
10
Overlay, Switch (Silver) WPL 8212088 Contact Us For Availability
10
Bowl, Mini WPL 8211926 Contact Us For Availability
11
Cover, Panel Switch (Transparent) WPL 8212093 Contact Us For Availability
11
Cover, Panel Switch (Silver) WPL 8212094 Contact Us For Availability
11
Blade, Dough WPL 8212016 Contact Us For Availability
12
Nameplate WPL 8211842 Contact Us For Availability
12
Bowl, Chef`s WPL 8211928 Contact Us For Availability
13
Capacitor WPL 8212089 Contact Us For Availability
13
Extractor, Citrus WPL 8212025 Contact Us For Availability
14
Clip, Capacitor WPL 8211607 Contact Us For Availability
14
Lid, Mini Bowl WPL 8211927 Contact Us For Availability
14
Disc, Slicing 6 mm WPL 8211931 Contact Us For Availability
14
Disc, Shredding 2 mm WPL 8211932 Contact Us For Availability
14
Disc, Shredding (6 mm) WPL 8211934 Contact Us For Availability
14
Disc, Julienne WPL 8211935 Contact Us For Availability
14
Disc, Grating Parmesan/Ice WPL 8211936 Contact Us For Availability
14
Disc, Cutting French Fry WPL 8211937 Contact Us For Availability
14
Rack, Disc WPL 8211938 Contact Us For Availability
14
Whip, Egg Optional Parts (Not Illustrated) WPL 8212033 Contact Us For Availability
14
Accessory Box WPL 8212034 Contact Us For Availability
14
Mini Bowl and Lids (2) WPL 8212059 Contact Us For Availability
15
Relay & Switch Assembly WPL 8212090 Contact Us For Availability
16
Foot (White) WPL 8211844 Contact Us For Availability
16
Foot (Black) WPL 8211845 Contact Us For Availability
17
Cord, Power (Black) WPL 8212077 Contact Us For Availability
17
Cord, Power (White) WPL 8212078 Contact Us For Availability
18
Bezel, Switch Panel WPL 8212095 Contact Us For Availability
× ![]()
