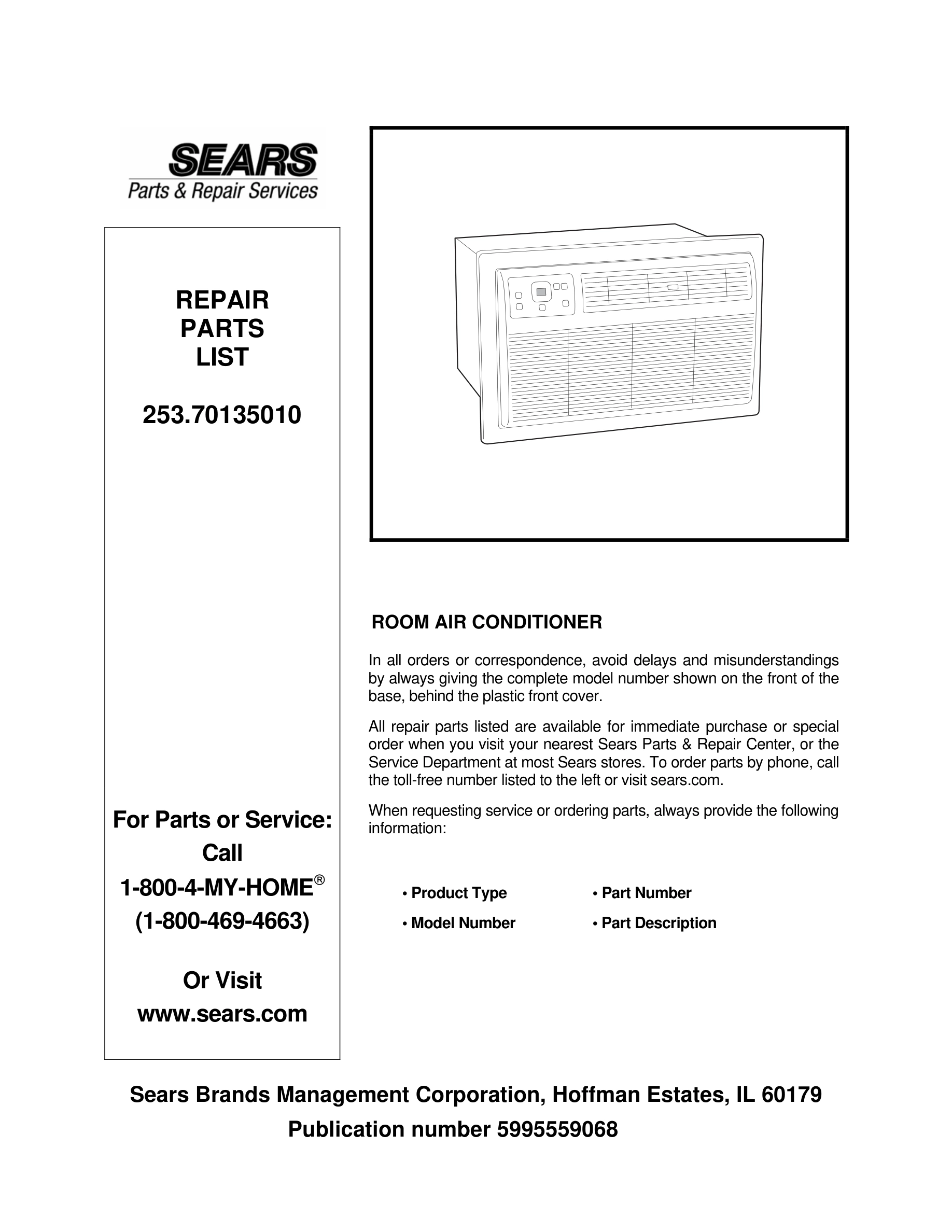

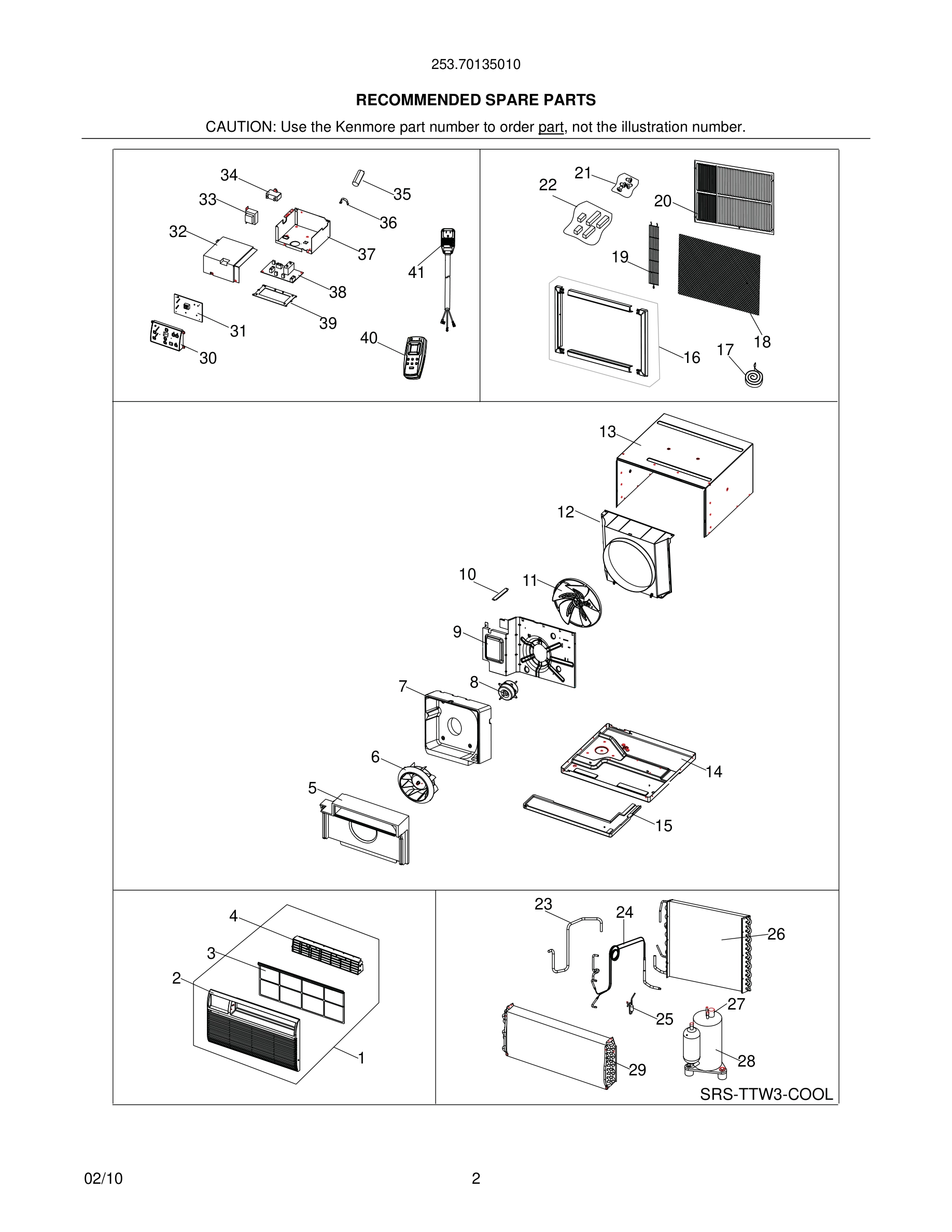

Model Kenmore 253.70135010 ROOM AIR CONDITIONER – Common Parts & Diagrams

1#
Front Assembly, complete panel
Front Assembly, complete panel WCI 5304476434 Contact Us For Availability
View on Model
9
Bulkhead, air system
Bulkhead, air system WCI 5304470964 Contact Us For Availability
View on Model
10
Rod, connecting link
Rod, connecting link WCI 5304470965 Contact Us For Availability
View on Model
12
Shroud, fan housing, condenser
Shroud, fan housing, condenser WCI 5304470970 Contact Us For Availability
View on Model
13
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304476440 Contact Us For Availability
View on Model
14
Base, unit chassis
Base, unit chassis WCI 5304476441 Contact Us For Availability
View on Model
15
Tray, drip pan
Tray, drip pan WCI 5304470961 Contact Us For Availability
View on Model
17
Seal, stuffer, foam, wall/sleeve
Seal, stuffer, foam, wall/sleeve WCI 5304470974 Contact Us For Availability
View on Model
19
Grille, air inlet, rear
Grille, air inlet, rear WCI 5304470976 Contact Us For Availability
View on Model
20
Grille, sleeve, aluminum, rear
Grille, sleeve, aluminum, rear WCI 5304470977 Contact Us For Availability
View on Model
21
Fastener Kit, rear grille, screws
Fastener Kit, rear grille, screws WCI 5304470978 Contact Us For Availability
View on Model
22
Seal & Spacer Kit
Seal & Spacer Kit WCI 5304470979 Contact Us For Availability
View on Model
23#
Tube, discharge
Tube, discharge WCI 5304476443 Contact Us For Availability
View on Model
24#
Tube, capillary
Tube, capillary WCI 5304476444 Contact Us For Availability
View on Model
26#
Condenser
Condenser WCI 5304476445 Contact Us For Availability
View on Model
27#
Overload Protector, compressor
Overload Protector, compressor WCI 5304476298 Contact Us For Availability
View on Model
28#
Compressor, with overload
Compressor, with overload WCI 5304475747 Contact Us For Availability
View on Model
29#
Evaporator, with cap tube
Evaporator, with cap tube WCI 5304476446 Contact Us For Availability
View on Model
30
Control Panel, with overlay
Control Panel, with overlay WCI 5304476447 Contact Us For Availability
View on Model
32
Cover, control box
Cover, control box WCI 5304476448 Contact Us For Availability
View on Model
35#
Capacitor
Capacitor WCI 5304475748 Contact Us For Availability
View on Model
36
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304473970 Contact Us For Availability
View on Model
37
Control Box
Control Box WCI 5304476449 Contact Us For Availability
View on Model
38#
PC Board, control, main
PC Board, control, main WCI 5304476450 Contact Us For Availability
View on Model
39
Holder, mounting plate, control
Holder, mounting plate, control WCI 5304476251 Contact Us For Availability
View on Model
40#
Remote Control, transmitter
Remote Control, transmitter WCI 5304476246 Contact Us For Availability
View on Model
41#
Power Cord, electric, LCDI
Power Cord, electric, LCDI WCI 5304476451 Contact Us For Availability
View on Model
