Model Whirlpool 16RB-4 RV GAS RANGE – Common Parts & Diagrams

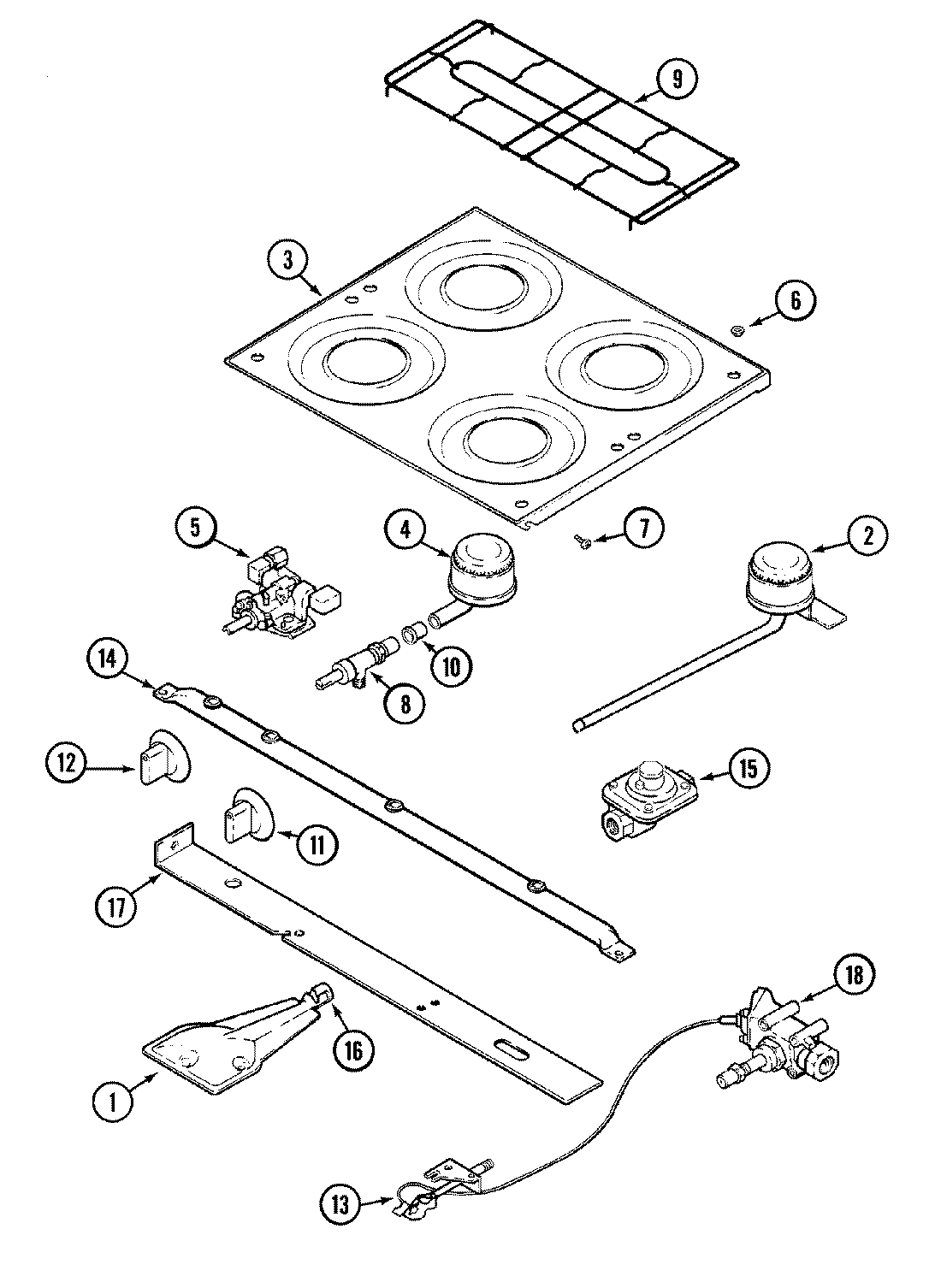

03 - TOP & BURNER ASSEMBLY

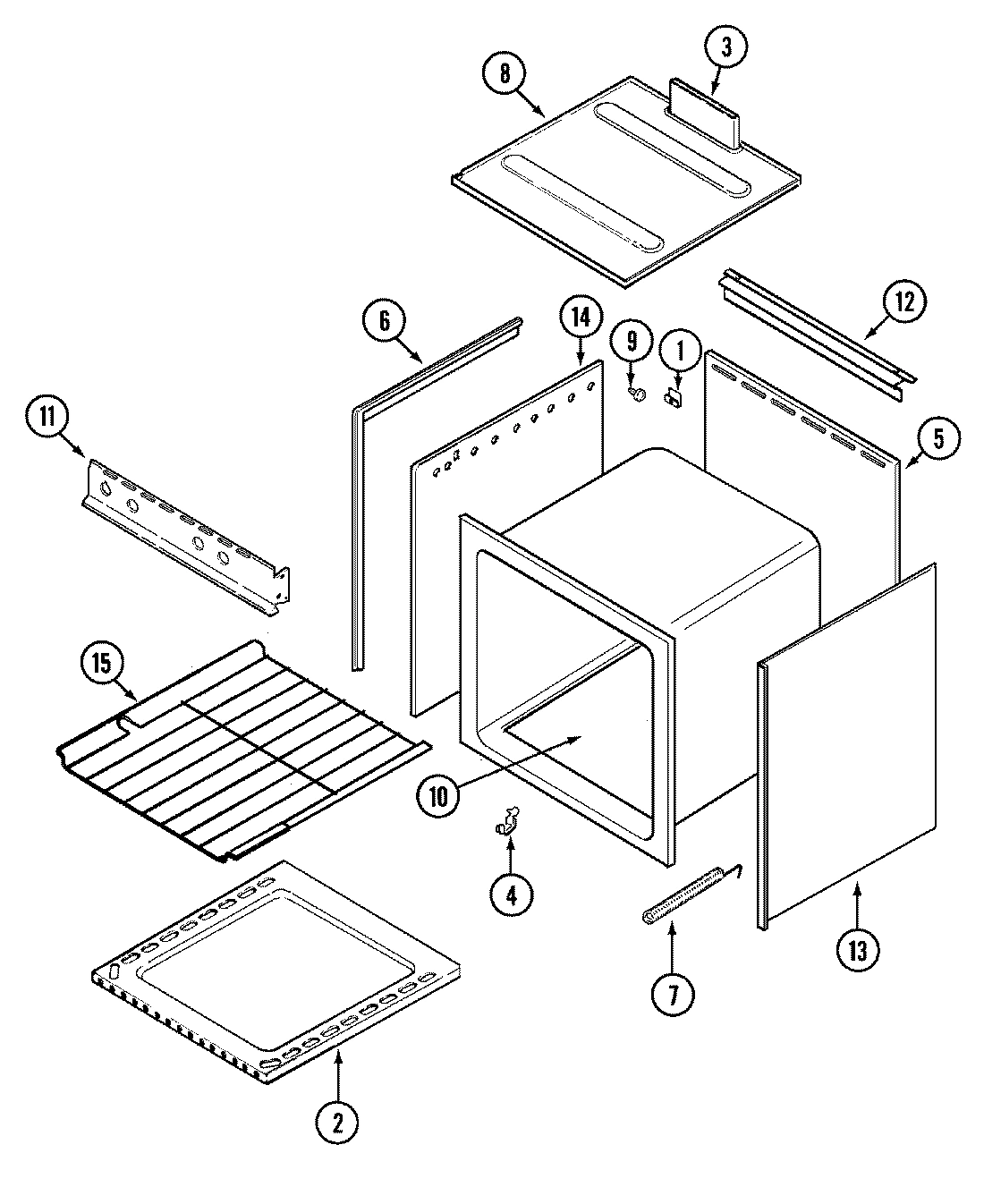

02 - OVEN
01 - DOOR
Common parts from model Whirlpool 16RB-4 RV GAS RANGE
1
OVEN BURNER ASSY. WPL 3403W02545 Contact Us For Availability
1
CLIP, MAIN TOP REAR WPL 7112P07160 Contact Us For Availability
1
PANEL, DOOR BLACK WPL 2401F07970 Contact Us For Availability
1
PANEL, DOOR (BLK) WPL 2401F12670 Contact Us For Availability
2
BURNER, ASSY L.R. WPL 7505P14960 Contact Us For Availability
2
BURNER, ASSY R.R. WPL 7505P15060 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
2
HANDLE, DOOR WPL 7701P09260 Contact Us For Availability
3
TOP, MAIN (BLK) WPL 2001F10890 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
3
SCREW WPL 7101P35660 Contact Us For Availability
4
BURNER, ASSY FRONT WPL 7505P14260 Contact Us For Availability
4
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
4
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
5
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
5
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
5
TUBING, 3/16 X 41.5`` WPL 3414F07744 Contact Us For Availability
5
TUBING, 1/4``- ODX42 1/2 WPL 3414F07944 Contact Us For Availability
5
THERMOSTAT WPL 7515P02960 Contact Us For Availability
5
THERMOSTAT WPL 7515P03160 Contact Us For Availability
5
BACK, MAIN WPL 4002F15151 Contact Us For Availability
5
BOLT, MAIN BACK WPL 7101P22760 Contact Us For Availability
5
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
5
NUT WPL 7103P08260 Contact Us For Availability
5
HINGE, DOOR (RT) WPL 3418A05834 Contact Us For Availability
5
HINGE, DOOR (LT) WPL 3418A05934 Contact Us For Availability
6
GROMMET WPL Y8007P02060 Contact Us For Availability
6
TRIM WPL 3608W03570 Contact Us For Availability
6
TRIM WPL 3608W03670 Contact Us For Availability
6
LINING DOOR WPL 2402F12119 Contact Us For Availability
7
BUMPER WPL 8003P00860 Contact Us For Availability
7
SPRING, OVEN DOOR WPL 7803P05160 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
8
VALVE, TOP BURNER (5200) WPL 7502P18160 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 4011F15351 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
9
GRATE, TOP WPL 7518P01260 Contact Us For Availability
9
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03860 Contact Us For Availability
10
INSERT, BURNER WPL 7214P01560 Contact Us For Availability
10
BOTTOM, MAIN WPL 4011F12551 Contact Us For Availability
10
SCREW, No.10-16AB WPL 7101P22160 Contact Us For Availability
11
KNOB, VALVE WPL 7733P07260 Contact Us For Availability
11
PANEL, MANIFOLD WPL 2616F12170 Contact Us For Availability
11
NUT WPL 7103P03460 Contact Us For Availability
12
KNOB, THERMOSTAT WPL 7731P06760 Contact Us For Availability
12
KNOB, THERMOSTAT WPL 7731P10960 Contact Us For Availability
12
SHIELD, DEFLECTOR FLUE WPL 3604F12570 Contact Us For Availability
13
PILOT BURNER WPL 7505P20260 Contact Us For Availability
13
PILOT, OVEN WPL 968143 Contact Us For Availability
13
SCREW WPL 7101P06460 Contact Us For Availability
13
SCREW WPL 7101P06160 Contact Us For Availability
13
SIDE BODY RT WPL 4016F03451 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P09660 Contact Us For Availability
14
SIDE BODY LF WPL 4016F03351 Contact Us For Availability
15
FITTING, HALF UNION WPL 7507P08360 Contact Us For Availability
15
REGULATOR, PRESSURE WPL 7510P04160 Contact Us For Availability
15
RACK WPL 7801P02760 Contact Us For Availability
16
MIXER, AIR WPL 3411F00334 Contact Us For Availability
17
SUPPORT, OVEN BURNER WPL 3807F32045 Contact Us For Availability
17
SUPPORT, OVEN BURNER WPL 74001834 Contact Us For Availability
18
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
18
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
18
VALVE, OVEN WPL 7501P05660 Contact Us For Availability
18
VALVE, OVEN WPL 7501P12160 Contact Us For Availability
19
MANUAL, USE & CARE WPL 8112P10760 Contact Us For Availability
× ![]()
