Model Bosch B09IB91NSP/01 Refrigerator – Common Parts & Diagrams
Diagram 1

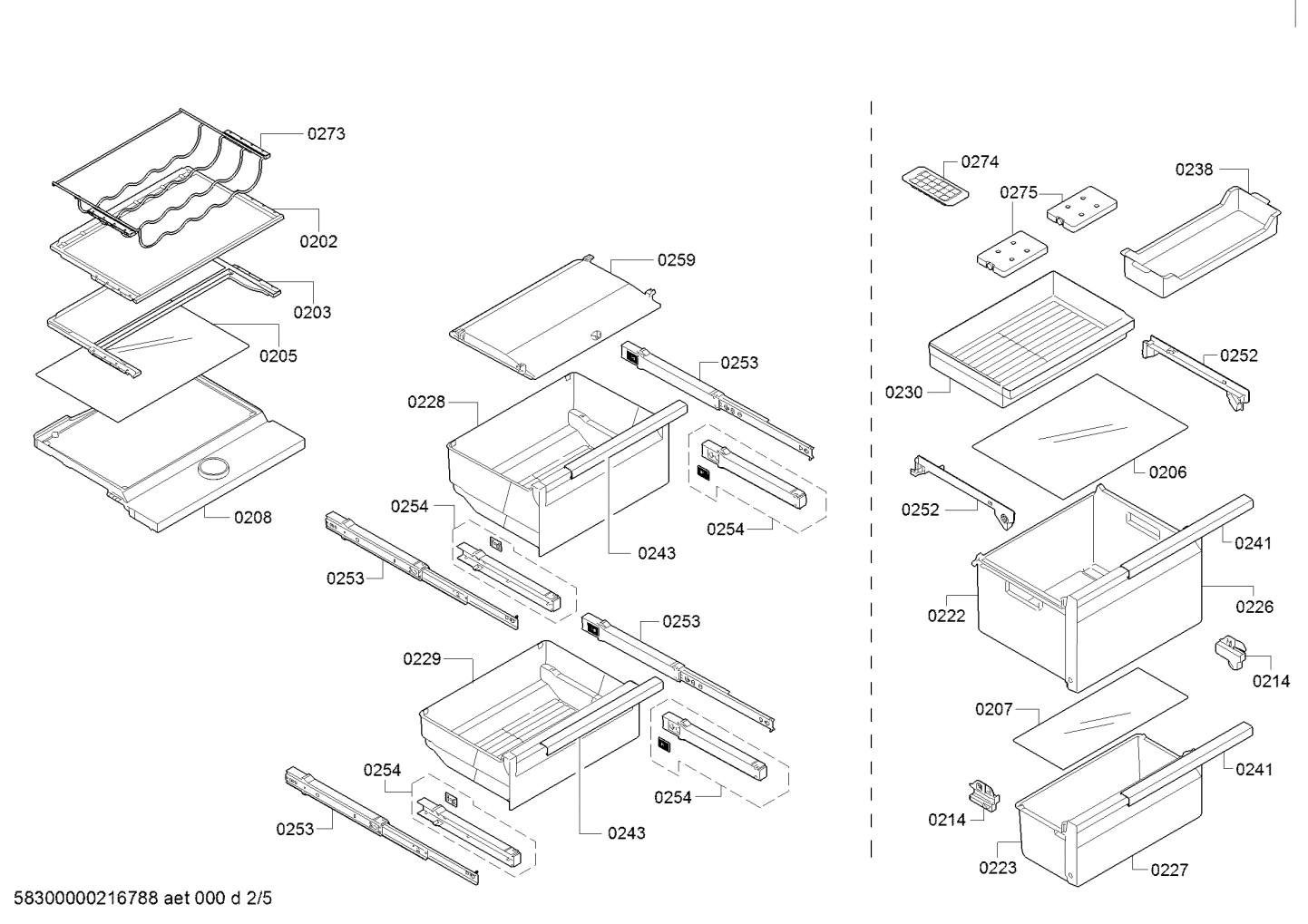

Diagram 2
Diagram 3
Diagram 4
Diagram 5
Common parts from model Bosch B09IB91NSP/01 Refrigerator
0132
Evaporator BOS 00744710 Contact Us For Availability
0134
Heating element BOS 11018750 Contact Us For Availability
0136
Salver BOS 11027641 Contact Us For Availability
0137
Salver BOS 11027640 Contact Us For Availability
0138
Bolt BOS 00607844 Contact Us For Availability
0141
Holder BOS 10007870 Contact Us For Availability
0151
Cover BOS 10007831 Contact Us For Availability
0152
Cover BOS 00744737 Contact Us For Availability
0154
Rivet BOS 00015275 Contact Us For Availability
0155
Cover BOS 11027592 Contact Us For Availability
0157
Cover BOS 12023965 Contact Us For Availability
0187
Fixture BOS 00617420 Contact Us For Availability
0198
Fixing kit BOS 00637192 Contact Us For Availability
0198
Fixing kit BOS 00750945 Contact Us For Availability
0198
Mounting set BOS 11033617 Contact Us For Availability
0199
Fixture BOS 10000010 Contact Us For Availability
0199
Repair-set BOS 10026699 Contact Us For Availability
0199
Cover BOS 12025753 Contact Us For Availability
0199
Repair-set BOS 12027935 Contact Us For Availability
0199
Repair-set BOS 12041519 Contact Us For Availability
0202
Glass plate BOS 00743196 Contact Us For Availability
0203
Glass plate divided BOS 00743197 Contact Us For Availability
0205
Glass plate BOS 11027565 Contact Us For Availability
0206
Glass plate BOS 00743202 Contact Us For Availability
0207
Glass plate for freezer BOS 00743201 Contact Us For Availability
0208
Shelf BOS 11033392 Contact Us For Availability
0214
Seating BOS 00628276 Contact Us For Availability
0222
Drawer body Big Box BOS 00743232 Contact Us For Availability
0223
Drawer body freezer BOS 00743228 Contact Us For Availability
0227
Panel BOS 00743231 Contact Us For Availability
0228
Salver BOS 11033393 Contact Us For Availability
0229
Container BOS 11033394 Contact Us For Availability
0230
Salver BOS 00744753 Contact Us For Availability
0238
Berry tray inlay BOS 11028371 Contact Us For Availability
0243
Handle-strip BOS 11031607 Contact Us For Availability
0252
Seating BOS 00627244 Contact Us For Availability
0253
Rail-pull out BOS 11007158 Contact Us For Availability
0254
Cover BOS 11007160 Contact Us For Availability
0259
Lid BOS 11027568 Contact Us For Availability
0274
Ice container BOS 12021016 Contact Us For Availability
0275
Ice Pack BOS 00085716 Contact Us For Availability
0301
Door BOS 00718369 Contact Us For Availability
0302
Seal-door BOS 00684270 Contact Us For Availability
0303
Door BOS 00712047 Contact Us For Availability
0315
Cover part upper fridge door BOS 00743585 Contact Us For Availability
0316
Cover part upper freezer door BOS 00743586 Contact Us For Availability
0317
Fixture BOS 00743195 Contact Us For Availability
0342
Egg rack BOS 00635924 Contact Us For Availability
0344
Holder BOS 00750265 Contact Us For Availability
0403
Container-condensed water BOS 11022462 Contact Us For Availability
0404
Inverter BOS 12015105 Contact Us For Availability
0409
Power cord BOS 00757740 Contact Us For Availability
0410
Rail BOS 11027629 Contact Us For Availability
0413
Valve-magnet BOS 12029045 Contact Us For Availability
0413
Clamping piece BOS 10008823 Contact Us For Availability
0581
Strip BOS 11045238 Contact Us For Availability
0582
Strip BOS 23001273 Contact Us For Availability
0583
Cover BOS 00750567 Contact Us For Availability
0584
Distance holder BOS 00627451 Contact Us For Availability
0586
Distance holder BOS 10007994 Contact Us For Availability
0587
Fixture BOS 10007993 Contact Us For Availability
0588
Fixing kit BOS 00754976 Contact Us For Availability
0589
Cover BOS 00605927 Contact Us For Availability
0590
Cover BOS 10007992 Contact Us For Availability
× ![]()
